Electric scooter 36V 48V brushless DC motor
Electric scooter 36V 48V brushless DC motor
- Detail
- Parameters
| Rated Power: 3000W (could be 14000W peak in few seconds) | Axle flats: 10mm |
| Rated Voltage: 72V as default (48V-96V, optional) | Hall: Dual Hall Set with waterproof connectors |
| Matching Rim Size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch,moped wheel. | Cross Section of Phase Wire (not include insulation layer): 10mm2 |
| Working Temperature: 70-120℃ , peak 150 ℃ | Hall Sensor Phasing angle: 120 degree |
| Max. Torque: approx 182N.m | Waterproof Grade: IP54 |
| Max Efficiency: 86-91% | Color of Motor: Black (as default), White/Luminous (extra $5.0) |
| Continuous Battery Current: 52A (72V) | Peak Battery Current: 104A (72V) |
Motor Type

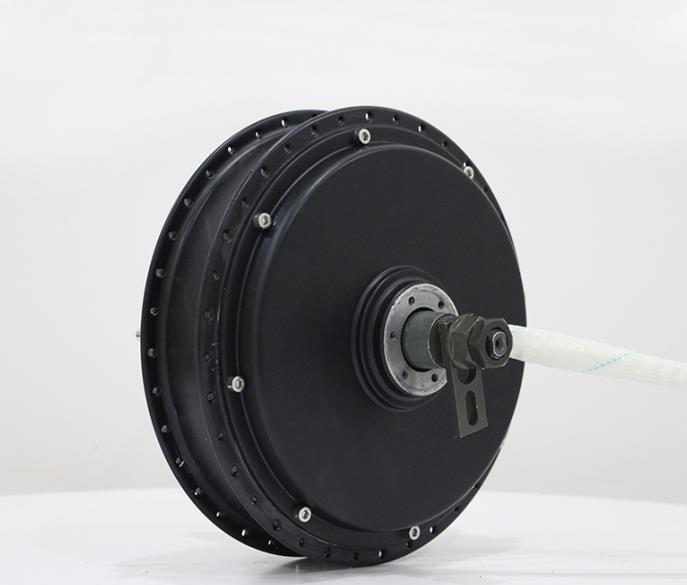

BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
Suggest Peak Phase Current
196-245A (depend on the kV)
Speed
80KPH as default (24-120KPH, optional)
QS Motor,QSMOTOR
Thermic Probe
Motor Design
Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
kV
6.3/7.3/8.1/8.3/9.0(as default)/10.6/11.4/13.3/14.3/16.3/17.7 etc.
Working Temperature
70-120℃ , peak 150 ℃
Hall Sensor Phasing angle
120 degree
Magnet Height
50mm, 16 pole pairs
Drop-outs/Rear Fork Width for installation
150-154mm
Stator
Aluminmum Core
Freewheel:14mm english thread length for single/3 speed
Rated Voltage
72V as default (48V-96V, optional)
Hall
Dual Hall Set with waterproof connectors
Matching Rim Size:08inch 10inch 11 inch
